EN 13501-2

EI Fire Resistant Glass

Offers protection for both integrity and insulation. Available for fire resistant durations of 30, 60, 90 and 120 minutes.

Overview

Certified to Euro Norm

Suppliers of EI Fire Resistant Glass to EN 13501-2 Standard.
Certified to Euro Norm.
Offers protection for both integrity and insulation.
Prevents the passage of radiant heat, flames and gasses from fire source to protected side.
Available for fire resistant durations of 30, 60, 90 & 120 minutes.
Excellent sound reduction properties.

Applications

Card descriptions are illustrative and await the client's wording.

Escape routes

Keeps protected escape corridors clear of flame, heat and smoke while staying transparent.
Corridors

Glazed corridor screens that hold back fire without closing off daylight and sight lines.
Office partitions

Fire rated partitions that divide open plan floors without losing the open feel.
Stairwells

Enclosed stair cores stay usable as a protected route during an evacuation.
Doors & windows

Vision panels, doorsets and windows glazed to the same fire rating as the wall around them.
Curtain walling

Exterior EI ISO units for facades that need fire performance alongside insulation.
Atriums

Large glazed voids compartmented floor by floor without visual barriers.
Shopfronts & facades

Street-facing glazing where fire separation from neighbouring units is required.
Designers Generated Copytext for illustration purposes only. Suggested addition

Interior solutions

Two faces of 5 or 6mm glass, with an intumescent liquid gel between.

Interior EI Glass specifications
Product	Fire resistance classification	Thickness	Weight (kg/m²)	Light transmission to EN 410	Sound reduction to EN 673 (Rw dB)	U-value to EN 673 (W/m²K)	Safety according to EN 12600
Jaden EI 30-IN	EI-30	22 mm	40	87%	43	5.6	Class A
Jaden EI 60-IN	EI-60	28 mm	46	86%	44	5.6	Class A
Jaden EI 90-IN	EI-90	34 mm	53	86%	46	5.6	Class A
Jaden EI 120-IN	EI-120	50 mm	71	86%	46	5.6	Class A

Exterior solutions

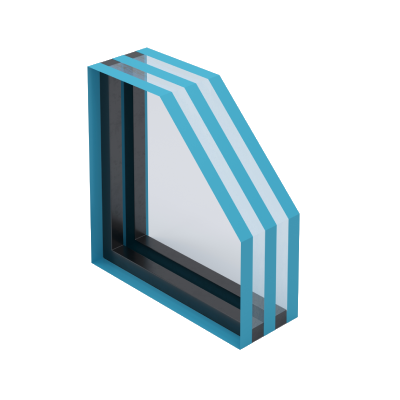

Two faces of 5 or 6mm glass, with an intumescent liquid gel between, plus an additional 12mm spacer bar, with a 6mm Low E or solar control outer.

Exterior EI Glass specifications
Product	Fire resistance classification	Thickness	Weight (kg/m²)	Light transmission to EN 410	Sound reduction to EN 673 (Rw dB)	U-value to EN 673 (W/m²K)	Safety according to EN 12600
Jaden EI 30-EX ISO	EI-30	38 mm	50	74%	43	1.4	Class A
Jaden EI 60-EX ISO	EI-60	44 mm	56	73%	44	1.4	Class A
Jaden EI 90-EX ISO	EI-90	50 mm	63	73%	46	1.4	Class A
Jaden EI 120-EX ISO	EI-120	66 mm	81	73%	46	1.4	Class A

Technical delivery conditions

Due to the gel infilling, EI units can be extremely heavy. Please refer to the product datasheets for the specific weight of your product.
Where suitable, weight rated glass suckers may be used to both sides of the unit of the standard EI glass makeup. On ISO units the weight of the unit should not be taken on the external solar control pane. Slings should be used to support the base of the glass and/or glass suckers may be used to the fire glass side only.

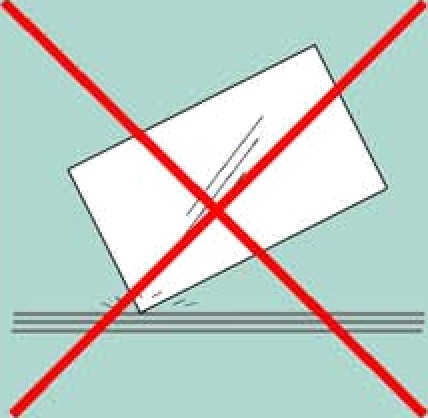

Ensure glass is stored in a vertical or near vertical position at all times.
Ensure no damage can occur to edge of glass during storage & handling.
During storage, protect glass from exposure to rain and extreme weather conditions.
Correct installation into framing systems will ensure the fire performance of the glass.
During storage or transport, ensure that entire glass unit is supported at all times by evenly spaced wooden blocks.
For internal grade glass, ensure the products are shaded but ventilated during transport or site storage.
